The Nalm6-Fluc-Puro/HuCD19-Puro (mid) cell line stably expresses firefly luciferase and levels of human CD19 that are below the endogenous levels normally observed in Nalm6 cells (see Characterization tab for data). The cells are designed for in vitro and in vivo studies of tumor cells expressing CD19. These cells can be used in combination with other Imanis Nalm6-Fluc-Puro cell lines that are part of the CD19 panel comprised of Nalm6-Fluc-Puro cells with various CD19 surface receptor densities:

• Nalm6-Fluc-Puro (endogenous (high) levels of CD19)
• Nalm6-Fluc-Puro/CD19-KO (negative for CD19)
• Nalm6-Fluc-Puro/HuCD19-Puro (low) (moderate levels of CD19)

To generate this cell line, Nalm6-Fluc-Puro/CD19-KO cells were transduced with a human CD19-encoding lentivirus. A moderate HuCD19 expressing population was generated by selection using a methylcellulose based semi-solid medium.

This cell line has been tested for mycoplasma contamination and is certified mycoplasma free.

The parental Nalm6 cell line was licensed and purchased directly from ATCC*.

Replication Competent Lentivirus (RCL) Test (including a test report) is available for this cell line at an added cost. Contact us to learn more.

*The ATCC trademark and trade name and any and all ATCC catalog numbers are trademarks of the American Type Culture Collection.

Morphology

---

Phase cell photo taken at 200x magnification

Luciferase Expression

---

CD19 Expression

---

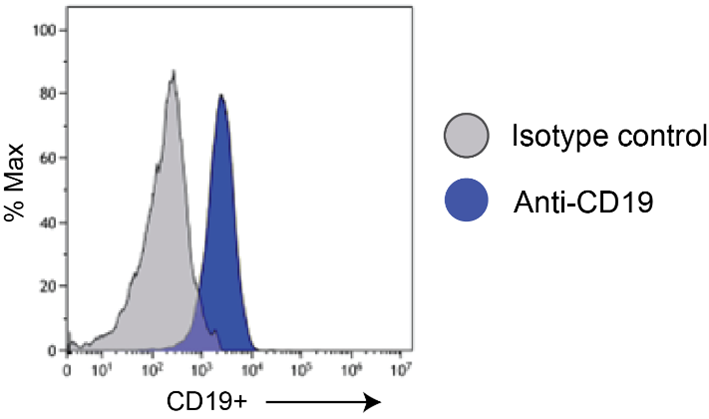

Nalm6-Fluc-Puro/HuCD19-Puro (mid) cells were stained with an anti-CD19 (blue) or isotype control (grey) antibody and analyzed by flow cytometry.











The indicated cell lines were stained with an anti-CD19 (blue) or isotype control (grey) antibody and analyzed by flow cytometry. The antibody binding capacity, representing the number of CD19 receptors on the surface of the cells was quantitated using a Quantum-Simply cellular kit.

Surface Receptor Profiling

---

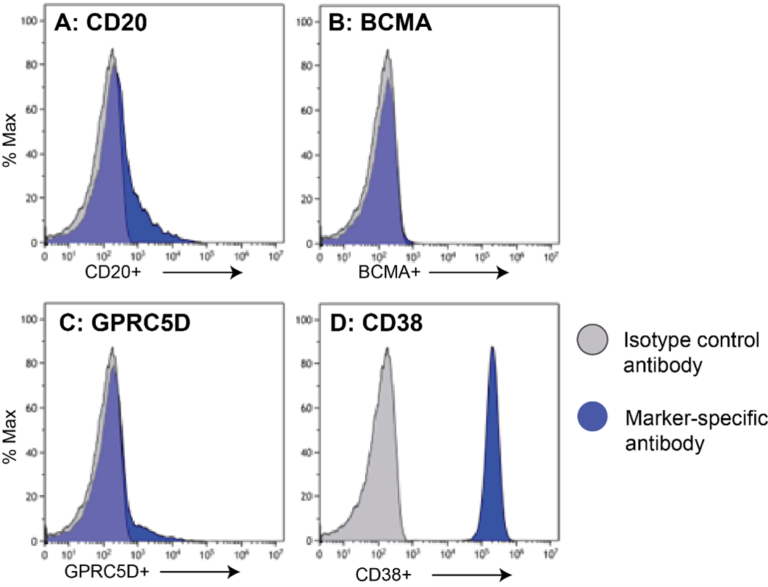

Nalm6-Fluc-Puro/HuCD19-Puro (mid) cells (blue) were stained with anti-CD20 (A), anti-BCMA (B), anti-GPRC5D (C), anti-CD38 (D), or isotype control (grey; all panels) antibody and analyzed by flow cytometry.

CAR-T Activation Assay

---

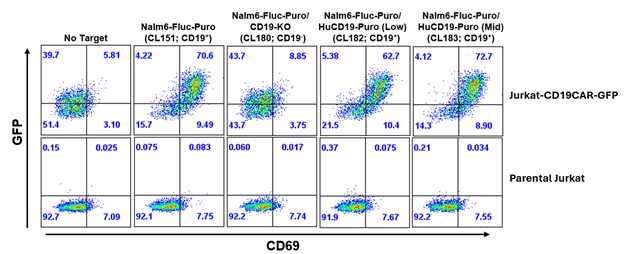

Jurkat T cells expressing a CD19-CAR and GFP were generated by lentivector transduction. Tranduced or untransduced parental Jurkat were incubated in a 1:1 ratio with the indicated Nalm6 cell lines and the following day flow cytometry was performed. The CD3+ Jurkat cells were analyzed for CD19CAR-GFP expression and CD69 expression, which is upregulated in activated T cells.

Complete Growth Medium: RPMI-1640 (IMDM) supplemented with 10% fetal bovine serum (FBS), 10 mM HEPES, and 1% Penicillin/Streptomycin.
For long-term maintenance (more than two to three weeks) addition of 1 µg/mL of puromycin to the media is recommended to maintain high Fluc and HuCD19 expression.
These cells should be grown in the indicated medium and subcultured as needed to maintain a density between 5 x 105 and 3 x 106 cells/mL. The cells can be passaged by dilution in fresh medium, with occasional passaging using centrifugation to limit the amount of debris in cultures.

These cells are suitable for in vitro and in vivo experimentation. The Fluc transgene facilitates in vivo noninvasive bioluminescent imaging of implanted cells and quantitation of cells in vitro.

These cells were generated via lentiviral vector transduction. The lentiviral vectors used for transduction were self-inactivating (SIN) vectors in which the viral enhancer and promoter have been deleted. Transcription inactivation of the LTR in the SIN provirus increases biosafety by preventing mobilization by replication competent viruses and enables regulated expression of the genes from the internal promoters without cis-acting effects of the LTR¹. Nevertheless, all work with these cells should be performed under biosafety-level 2 (BSL2) conditions by trained personnel. Institutional requirements may permit handling of these cells under BSL1 conditions if certain criteria are met.

1. Miyoshi, H et al. (1998). Development of a self-inactivating lentivirus vector. Journal of Virology 72: 8150-8157.
